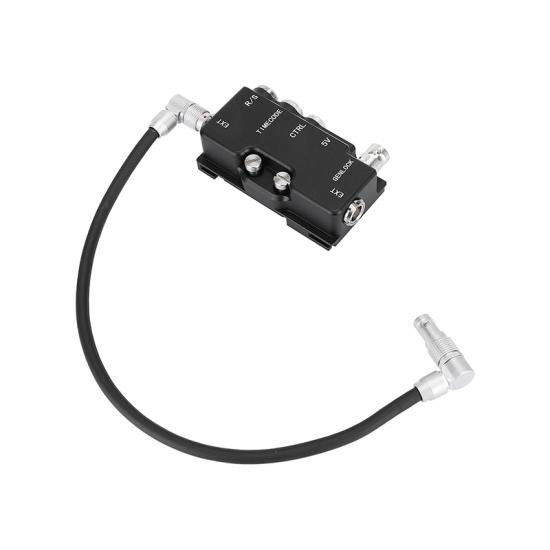

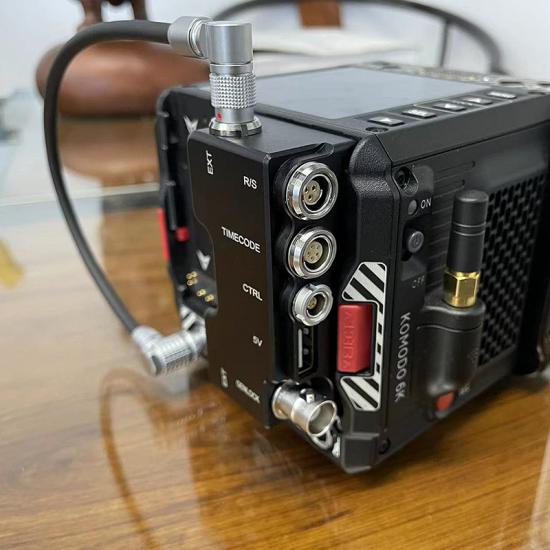

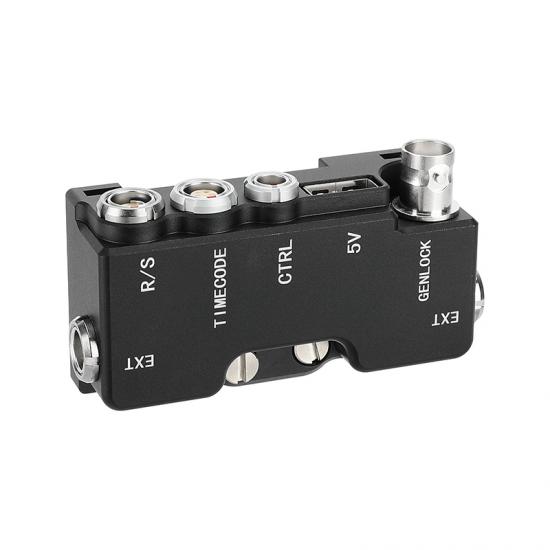

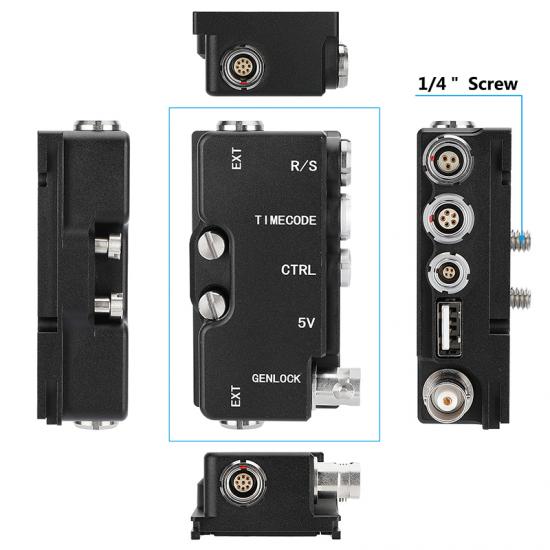

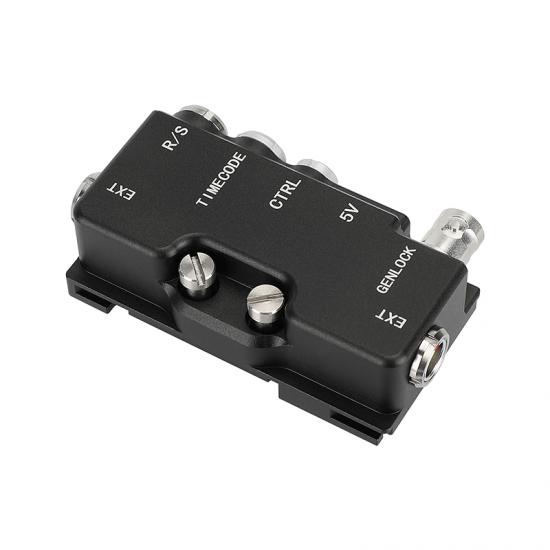

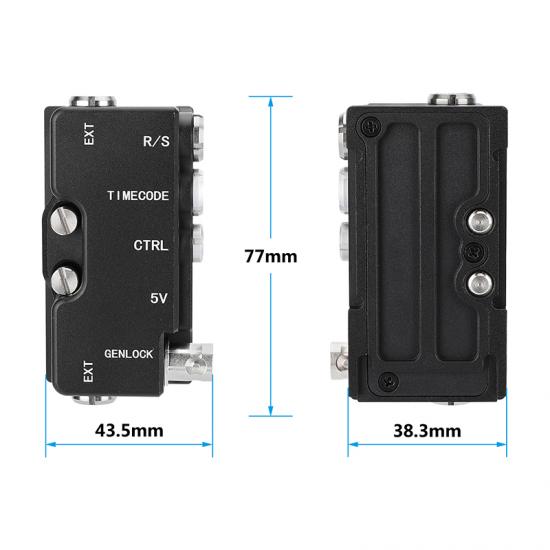

Available ports include:
❶ R/S (3pin)
Simple runop of the handle trigger box, simple 3-pin trigger cable, etc.
No power available
Devices like ARRI WCU-4 may require a CTRL port interface with cable K2.0015758
pin1:GND, pin2:N/C, pin3:GPI
❷ Time code (0B 5pin)
Standard wiring of time code input/output
pin1:GND, pin2:LTC-IN, pin3:N/C, pin4:N/C, pin5:LTC-OUT
❸ CTRL (00B 4pin)
RED CTRL standard wiring
pin1:GND, pin2:UART-RX, pin3:GPO, pin4:UART-TX
❹ 5V (USB)
5V available, maximum 500mA
May need to enable power in the camera menu
❺ Genlock (BNC)
Standard wiring for genlock
Center: signal, shell: GND
❻ EXT input/output, one EXT 0B9 pin output is reserved to ensure that the original cable can continue to be used.
